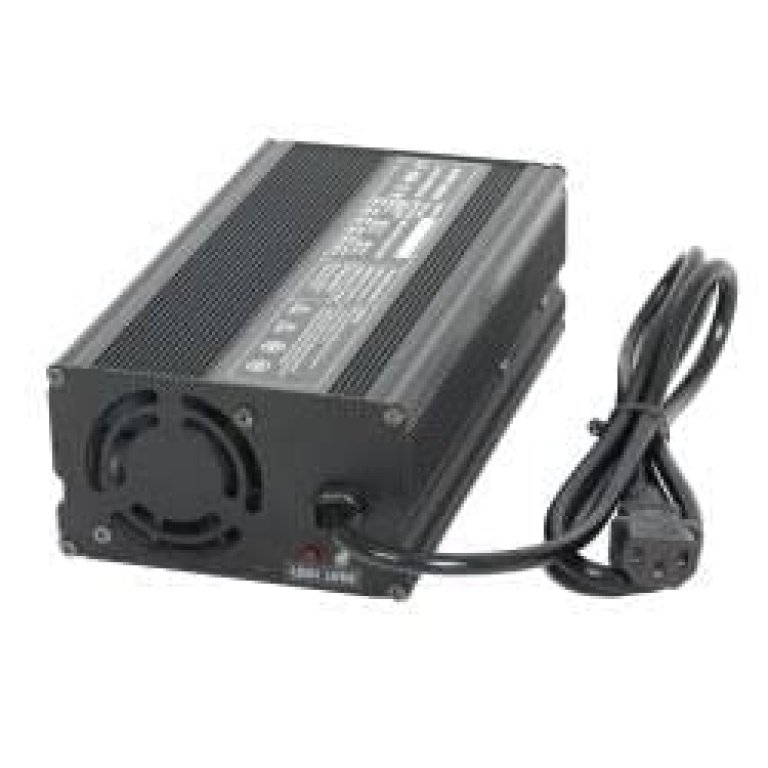

Model: CRG-07206M
Product Type: Metal Case
Battery Chemistry: Lithium-Ion
Charging Connector: Anderson
Input:
AC110-24V, 50/60HZ
Output:
84V 6A (CC/CV Charge Profile for 72V Li-ion Batteries)
Capacity (Ah) of the charging battery: 25Ah or higher (recommended)
Weight: 1.85 kg (4.40 lb)
Dimension (L x W x H): 8.7 in. x 5.1 in. x 2.6 in.
Normal Charge Current: 6.0 Amps
Charge Temperature: 0°C to 45°C
Storage Humidity: 60±25%R.H
Battery Protection Module*
Low Voltage Disconnect,
Over Voltage Disconnect,
Short Circuit Protection,
Reverse Polarity Protection,
Cell Balancing
*Protections are integrated into Battery Pack BMS as standard
